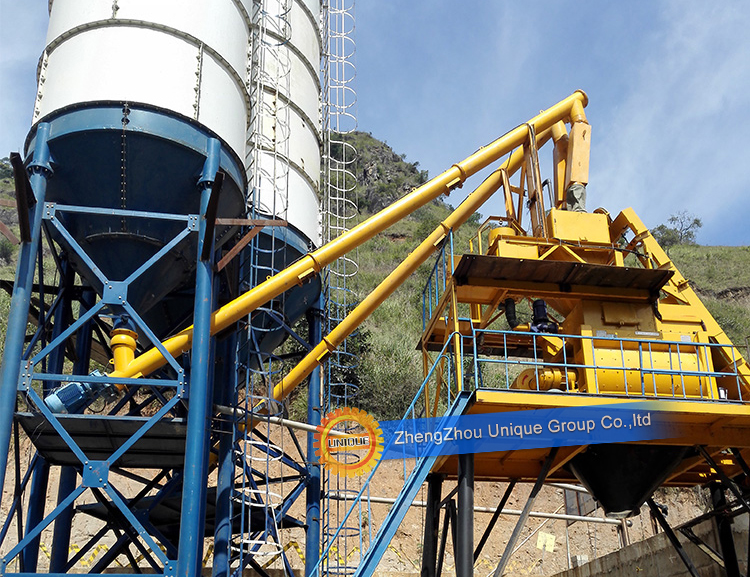

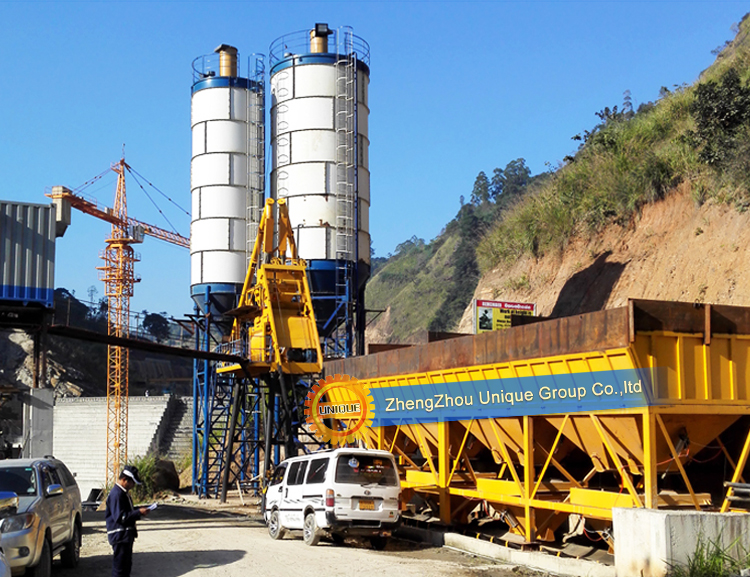

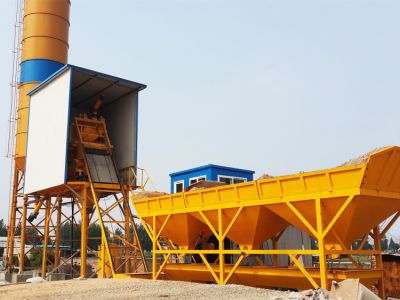

Bucket Type Concrete Batching Plant:
Concrete Batching Plant also known as concrete mixing plant or concrete plant, the skip hopper Concrete batching Plant is the plant which use bucket transport aggregate from weighting machine into concrete mixer. It is high efficiency, more energy saving and more uniform mixing.

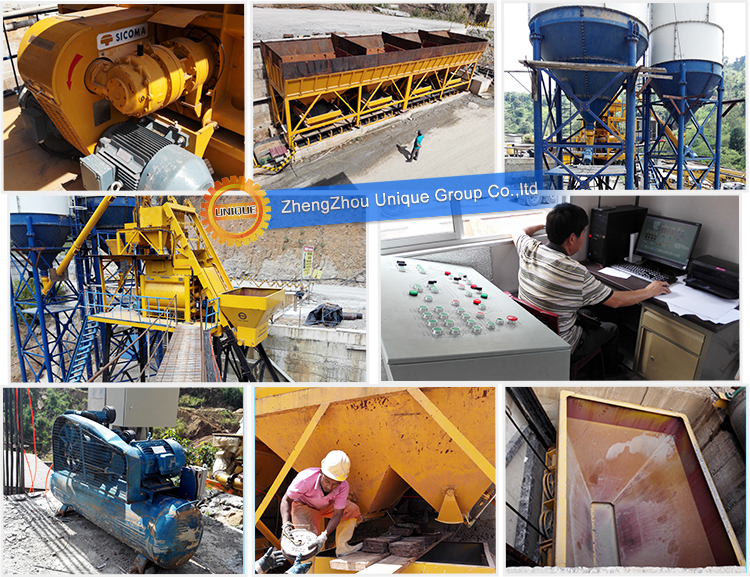

Concrete batching plant consists of material batching, mixing and electric control system, etc, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete.
Xinyu Machinery concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.
Concrete Batching Plant Parameters
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
| Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h |
| Mixing system | Twin shaft concrete mixer | |||
| Aggregate feeder | Bucket (Skip hopper) | |||
| Discharging height | 1500-3800mm | 3800mm | 3800mm | 3800mm |
| After-sale service | Erection & commissioning, operator training | |||
| Warranty | 12 months after erection | |||
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Discharging volume | 500L | 750L | 1000L | 1500L |
| Charging volume | 800L | 1200L | 1600L | 2400L |
| Mixing circle | 72s | |||
| Max. mixing size | 80/60mm | |||
| Aggregate batching machine | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Storage bins quantity | 2 or 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts |
| Aggregate scale hopper | 800L | 1200L | 1600L | 2400L |
| Weighing system | Water, Cement, Additive | |||
| Weighing precision | ±1% | |||
| Air system | Air compressor, etc | |||
| Control system type |
Computer auto-control module (PLC can be optional item) |
|||
