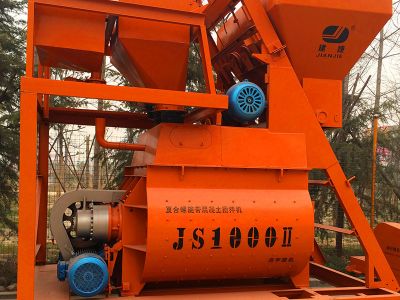

Twin Shaft Concrete Mixer (JS500-JS1500)

Discharge volume:1000L
Charging volume:1600L
Theoretical capacity: ≥50m3
Aggregate sizes:≤60/80mm
Mixing Motor Model: Y225S-4
Mixing Speed: 25.5r/min

TAG:  Twin Shaft Concrete Mixer (JS500-JS1500)

E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

This kind concrete mixer is compulsory twin shafts concrete mixer, which is composed of feeding system(skip hopper), discharging system, water supply system and electrical system and mainly used for skip hopper concrete batching plant to produce commodity concrete, such as hard concrete, plastic concrete, fluid concrete, various mortars, etc.

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine


TAG:  Twin Shaft Concrete Mixer (JS500-JS1500)

parameters of Skip type Concrete Mixer:



Parameter Model JS500 JS750 JS1000 JS1500
Item
Discharge volume 500L 750L 1000L 1500L
Charging volume 800L 1200L 1600L 2400L
Theoretical capacity ≥25m3 ≥35m3 ≥50m3 ≥75m3
Aggregate sizes ≤60/80mm ≤60/80m ≤60/80mm ≤60/80mm
Working circle 60s 60s 60s 60s
Mixing blade Speed 35r/min 30.5r/min 25.5r/min 23r/min
Quantity 2×7 2×8 2×8 2×9
Mixing motor Model Y180M-4 Y200L-4 Y225S-4 Y225M-4
Power 18.5 kw 30 kw 37 kw 45 kw
Lifting motor Model YEZ132S-4 YEZ132M-4 YEZ160L-4 YZE180M-4
Power 5.5 kw 7.5 kw 11 kw 18.5 kw
Pump motor Model 50DWB20-8A 65DWB35-5 KQW65-100 KQW65-100
Power 0.75 kw 1.1 kw 3 kw 3 kw
Weight 1500kg 6150kg 9880kg 10960kg
Dimensions (L x W x H) 3030x2300x2680 mm 4550x2250x2450 mm 4640x2250x2250 mm 5058x2250x2440 m

Customer Visit:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Installation site:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Company overview:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine


TAG:  Twin Shaft Concrete Mixer (JS500-JS1500)
Features of Twin Shaft Concrete Mixer(JS500-JS1500):

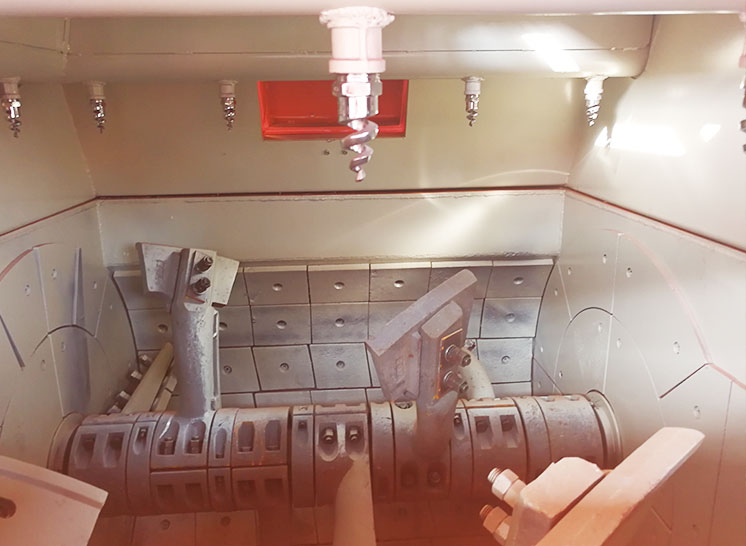

1. Longer Life : adopt the high hardness Mn- steel to produce the liner and blade and it can bearing 80,000.00~100,000.00 times working cycle ;
2. More Effective: With the new screw type blade, technician people join all of the blade as a whole mixer union to make the mixing system more steady and efficiency , it save 5~8 second each mixer cycle .
3. Economy: it can save your more power, electrical , and manpower when you produce the concrete
4. Green Initiative: designing can provide your the Green Initiative working place.
5. The height of discharge is 1.5m、2.7m or 3.8m(or as user’s requirement)
