Mobile Concrete Batching Plant

Capacity：25m3/h-90m3/h
Discharging Height：3800mm
Mixing system：JS500-JS1500
Aggregate batching machine： PLD800-PLD2400
After-sale service：12 months after erection

E-mail:sales@unique-cons.com
  • Overview
  • Parameters
  • Configuration
  • Downloads

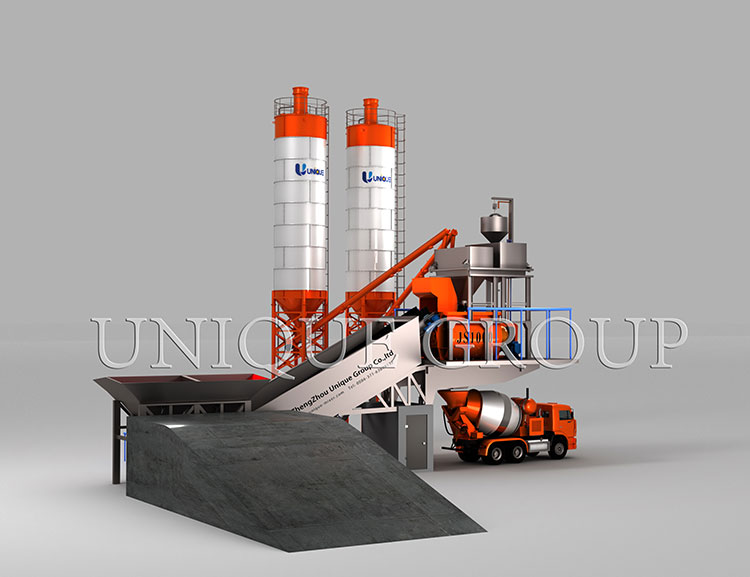

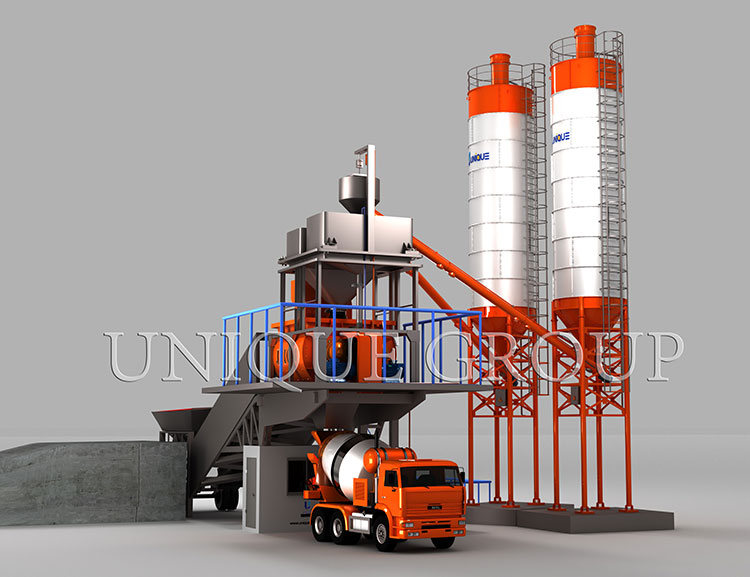

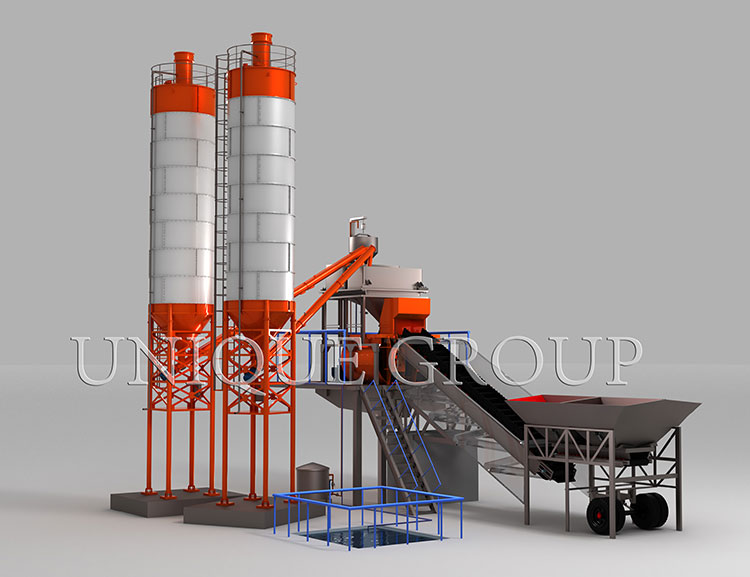

Mobile Concrete Batching Plant

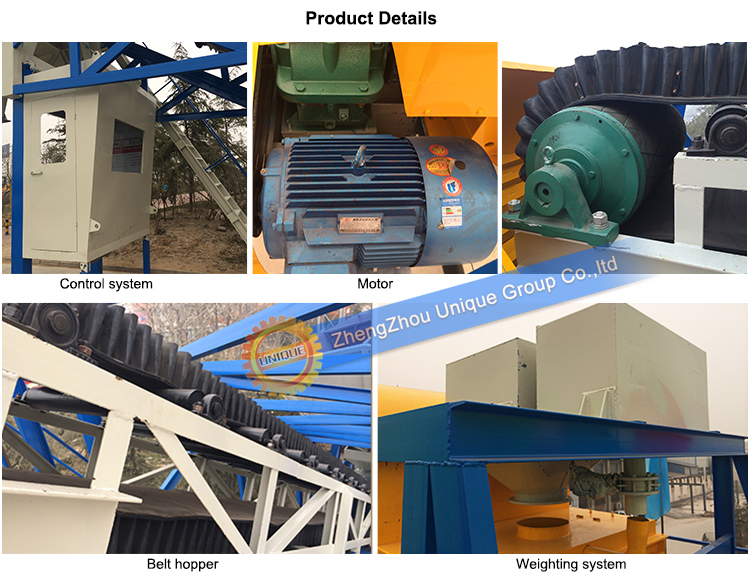

YHZS series Mobile Concrete Batch Plant including Aggregate bin, Twin-shaft Concrete Mixer, and Weighing system, dust collection system, etc.
1. Modular type, easy installation, high efficient heating system
2. With high-efficiency Concrete Mixer
3. High efficient mixing system



Mobile Concrete Batching Plant Parameters

Model
output
Mixer model
Aggregate bin
Discharging height
Control system
Feeding type
YHZS25
25-30m³/h
JS500
4x4m3
3.8m



Siemns+PLC+PC
Belt feeding
YHZS35
35-40m³/h
JS750
4x5m3
3.8m
Belt feeding
YHZS50
50-60m³/h
JS1000
4x6m3
3.8m
Belt feeding
YHZS75
75-85m³/h
JS1500
4x7m3
3.8m
Belt feeding
YHZS90
90-100m3/h
JS2000
4x8m3
3.8m
Belt feeding



Features of Mobile Concrete Plant:
1. It is very convenient to move from one site to another, so people who have many construction projects prefer mobile type concrete batching plant than the stationary type.

2. Easy installation. During installation, if the ground is flat and solid, it can be produced on the same day without foundation, and it is suitable for units that require tight schedules.

3. The whole machine adopts computer control, which can be operated automatically or manually. The operation is simple and easy to master.
