*Capacity: 40t/h *Total Power: 80kw
Select Capacity:

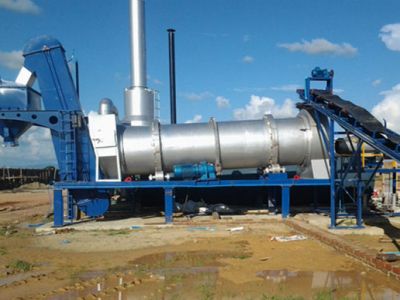

DHB40/MDHB40 asphalt drum mixing plant is a continuous mixing plant. The main charactristic of this plant is aggregate heating, mixing and bitumen adding and filler are done in one drum.
Features:
1. Ultra low fuel consumption.
2. Simple equipment consistent,easy to operate.
3. Easy to install, only need simple smooth and harden ground, do not need foundation.
4. Low equipment investment
|
Model |
DHB40/MDHB40 |
||
|
Main Parameter |
Rated Capacity (t/h) |
40 |
|
|
Installation Power |
80kW |
||
|
Working Noise (dB) |
≤70 |
||
|
Voltage |
220V/380V-50Hz (adjustable) |
||
|
Raw Material |
Aggregate Size (mm) |
≤25 |
|
|
Aggregate Gravity (kg/m3) |
≥1600 |
||
|
Aggregate Moisture |
≤5% |
||
|
Cold Feeder |
Cold Bin (m3) |
3X6 |
|
|
Feeding Belt Adjustment Mode |
Variable Frequency Drive |
||
|
Weighing System |
Method |
Belt Weigher |
|
|
Accuracy |
±1% |
||
|
Drying System |
Mixing Type |
Continuous |
|
|
Drying & Mixing Drum (mm) |
Φ1200X6000 |
||
|
Fuel |
Diesel, Heavy Oil, Fuel Oil, Natural Gas, Coal |
||
|
Burner |
Coal |
10~13kg/h |
|
|
Oil |
6~7kg/t |
||
|
Gas |
6~7kg/t |
||
|
Hot Aggregate Temperature |
≤160℃ |
||
|
Hot Asphalt Temperature |
130~165℃ (±5℃) |
||
|
Dust Collection System |
Avail. Type |
Cylone Collector/Volute Casing Collector/Baghouse Dust Collector/Water Scrubber |
|
|
Air Emissions |
≤100mg/Nm3 |
||
|
Bitumen Supply System |
Bitumen Tank (m3) |
1x30 |
|
|
Heating Method |
Electrical Heating/Thermal Oil Heating |
||
|
Weighing Method |
Flow Weigher |
||
|
Weighing Accuracy |
±0.5% |
||
|
Control System |
Operation Mode |
Full Auto/Manual |
|
|
Covering Area |
L x W (m) |
30x16 |
|
