Home > Products  > Concrete Mixing Machine  >  HZS60 Concrete Batching Plant

Products

HZS60 Concrete Batching Plant

Capacity:60m3/h

Aggregate feeder: Belt conveyor

Discharging Height:3800mm

Mixing system: Twin-shaft concrete mixer

After-sale service:Erection & commissioning, operator training

Aggregate batching machine: PLD2400


TAG:  HZS60 Concrete Batching Plant

E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

Belt Conveyor Concrete Batching Plant:

HZS series concrete mixing plant designed by UNIQUE Group has advanced technology in the world.

It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread.

It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine


TAG:  HZS60 Concrete Batching Plant

Bucket skip batching plant:

Model

HZS25

HZS35

HZS50

HZS75

Capacity(m3/h)

25

35

50

75

Mixing system

(twin shaft concrete mixer)

JS500

JS750

JS1000

JS1500

Aggregate Feeder

Bucket (Skip Hopper)

Discharging volume

500L

750L

1000L

1500L

Aggregate scale hopper

800L

1200L

1600L

2400L

Weighing system

Water, Cement, Additive

Air system

Air compressor, etc

Control system

Computer auto-control module (PLC can be optional item)

After-sales service

Erection & commissioning, operator trainining

Belt conveyor Batcing Plant:

Model

HZS60

HZS90

HZS120

HZS150

Capacity(m3/h)

60

90

120

150

Mixing system

(twin shaft concrete mixer)

JS1000

JS1500

JS2000

JS3000

Aggregate Feeder

Belt Conveyor

Discharging volume

1000L

1500L

2000L

3000L

Aggregate scale hopper

1600L

2400L

3200L

4800L

Weighing system

Water, Cement, Additive

Air system

Air compressor, etc

Control system

Computer auto-control module (PLC can be optional item)

After-sales service

Erection & commissioning, operator training



Customer Visit:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

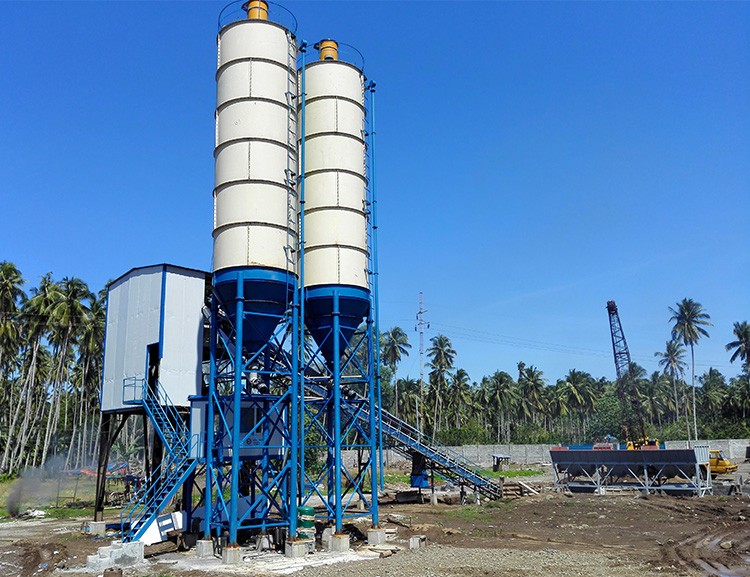

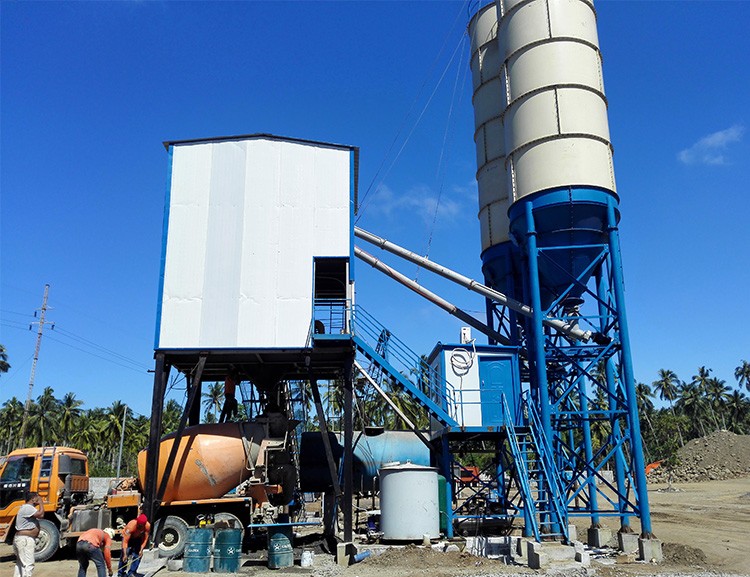

Installation site:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Company overview:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine


TAG:  HZS60 Concrete Batching Plant

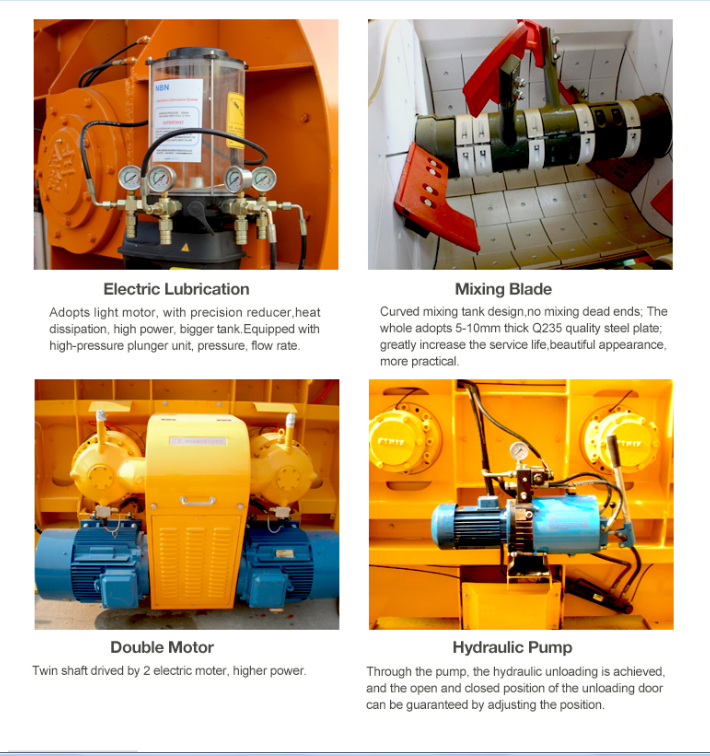

Features of Concrete Plant:

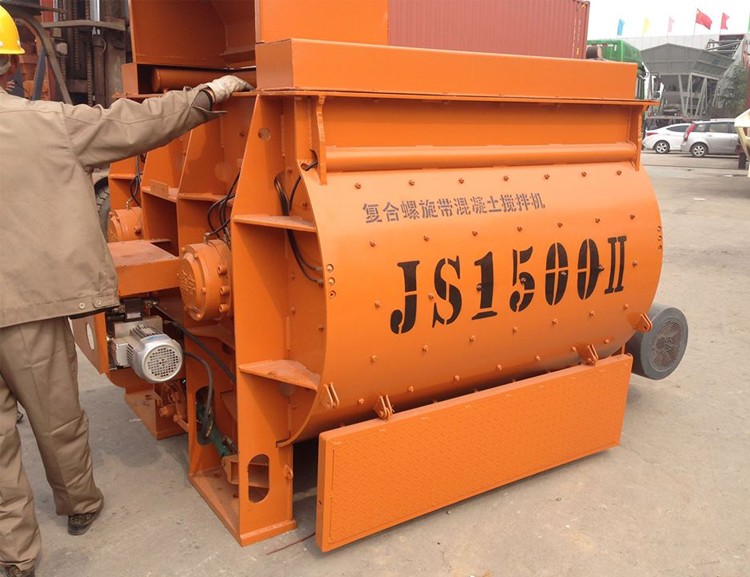

1) This concrete mixing plant adopts JS1000 concrete mixer, it is a double horizontal shaft concrete mixer, so it can mix concrete efficiency and enough in short time.
2) The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.
3) Sand & gravel batching machine use PLD1600, with has highly accuracy measuring.
4) There also has maintenance walkway, so that enginer can examine this plant easily.
5) Cement is stored in cement silo, and feeding by screw conveyor.
6) Water supply system is composed by water tank, water pump and water weigher.
The whole mixing, batching system is operated by electrical control room or control plate, fully automatical.

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine





UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine


TAG:  HZS60 Concrete Batching Plant
