Capacity:20-300tph
CRUSHING MATERIAL:limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc
APPLIED FIELD:This crusher widely used in quarry, mining, coal.

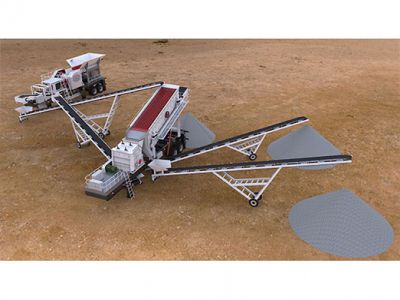

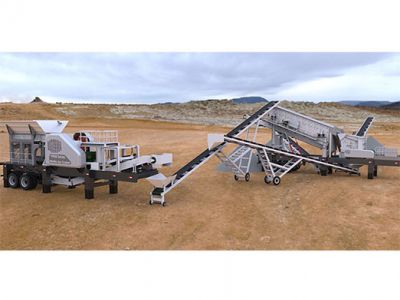

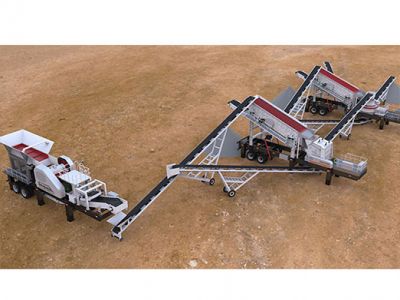

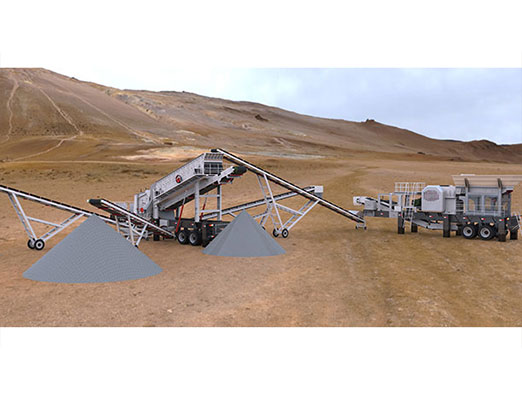

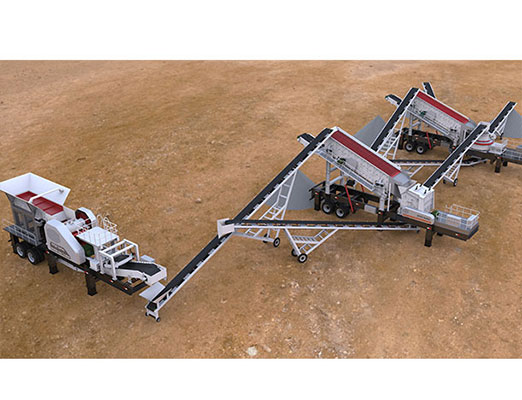

Portable/Mobile crusher plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment,foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.
|
Model Parameters |
YDS50 | YDS70 | YDS100 | YDS180 | |
| 1 | Vibrating feeder Model | GZT-0724 | GZT-0932 | GZT-0940 | GZT-1148 |
| 2 | Jaw crusher Model | PE-400×600 | PE-500×750 | PE-600×900 | PE-750×1060 |
| 3 | Main Belt conveyor | B650=6m | B800=7m | B1000=8m | B1000=11m |
| 4 | Adjustable Range of Discharge Opining(mm) | 40-100 | 50-100 | 95-165 | 80-180 |
| 5 | Capacity(t/h) | 10-35 | 25-60 | 30-85 | 72-150 |
| 6 | Power(kw) | 43 | 57 | 72 | 147 |
| 7 |
Transportation Dimension ( L×W×H) |
8600×2520×3770 | 9600×2520×3500 | 11097×3759×3500 | 1330×2900×4440 |
| 8 | Separators | RCYD | RCYD | RCYD | RCYD |
| Mobile Frame | biax | biax | biax | triaxial | |
Features:
1.Built with high quality jaw crusher, cone crusher and impact crusher
2.Feeder, screen and belt conveyor on board
3.Tractive steering shaft, convenient for road transportation
4.Integrated with landing gears, quick and convenient installation on site
5.Integrated motor and control panel.
